CT Scan
- 2.0 MHU Anode head capacity
- 500KHU/min max anode dissipation rate
- On-Board 24 KW Generator
- 120 cm metal-free scannable range
- Supports 180 kg patients accurately
- 65 cm aperture
- ± 200 gantry tilt
CT/E Dual
- 2.0 MHU Anode head capacity
- 500KHU/min max anode dissipation rate
- On-Board 24 KW Generator
- 120 cm metal-free scannable range
- Supports 180 kg patients accurately
- 65 cm aperture
- ± 200 gantry tilt
Hispeed Single
- 3.5 MHU anode heat capacity
- 820 KHU/min max anode sissipation reate
- On-Board 24 KW Generator
- 134 cm metal-free scannable range
- Supports 205 kg (450 lbs) patients accurately
- 70 cm aperture
- ± 300 gantry tilt
Hispeed Dual
- 3.5 MHU anode heat capacity
- 820 KHU/min max anode sissipation reate
- On-Board 24 KW Generator
- 134 cm metal-free scannable range
- Supports 205 kg (450 lbs) patients accurately
- 70 cm aperture
- ± 300 gantry tilt
LIGHTSPEED 4/8/16
- 440 mA capability
- 53kW generator
- High Frequency High Voltage Generator
- 6.3 MHU X-ray Tube
- Controls on Front and Back of Gantry
- In-room start
- Remote Gantry Tilt
- 205 kg (450 lb) maximum allowed with
- Normal Operation

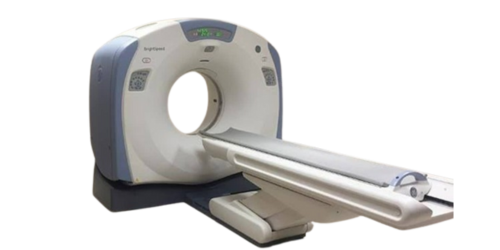

Brightspeed 4/8/16
- 440 mA capability
- 53kW generator
- High Frequency High Voltage Generator
- 6.3 MHU X-ray Tube
- Controls on Front and Back of Gantry
- In-room start
- Remote Gantry Tilt
- 205 kg (450 lb) maximum allowed with
- Normal Operation

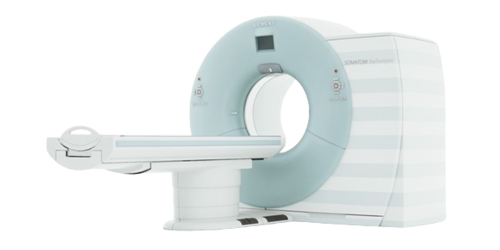

SOMATOME DEFINITION DS 128
- All routine and advance applications for clinical practices
- Full fast care Functionality to optimize patient centric product
- High performance image construction system.
- Industris highest spatial resolution
- High speed whole body coverage at highest spatial resolution
SENSATION 64/16
- Straton Xray tube technology
- 70% reduction in radiation dose
- 0 MHU xray tube: Straton with 5 Mhu/min cooling rate
- Max scan volume:157cm
- Max scan time:100 sec
- ± 300 gantry tilt

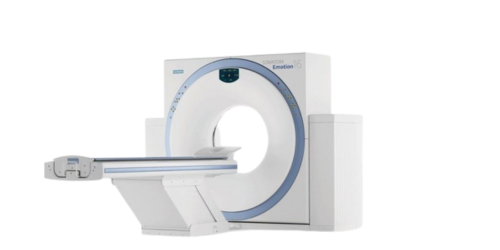

EMOTION 16
- Aperture: 70 cm Tilt: ± 300
- Fast and efficient with 0.6
- Scan time Detector time: Solid state
- 0.75 or 1.5mm sliceper rotation in less than 20 seconds
- Xray tube type/Make: Siemens Dura 422 MV Siemnens Straton
BIORAPH 40/64
- Detector material Lutetium Oxyothosilicate
- Crystal per detector block 169
- Photomultiplier tube 4 per block
- Max scan voDetector ring diameter 842 mm lume:157cm
- Number of detector ring 52 and total no. of detectors 32448
SYMBIA T6/12
- FOC 53.3x38.7 cm
- Diagonal FOV 65.9cm
- Diagonal 73.9cm
- Thickness 9.5mm
- Diameter 53-7.6cm and 6-5.1 cm
- Photomultiplier total number 59
REVOLUTION ACT 4/8/16
- 2.0 MHU Anode head capacity
- 500KHU/min Max anode dissipation rate
- 120 cm metal-free scan able range
- Supports 180 kg patients accurately
- 65cm aperture
- Digital tilt
OPTIMA 520 16/32
- 3.5 MHU anode heat capacity
- 820 KHU/min max anode dissipation rate
- On board 24 kw generator
- 134 cm metal free scan able range
- Supports 205 kg patients accurately
- 70cm aperture
- +/- 30 degree tilt
OPTIMA 540 16/32
- 6.3 MHU anode heat capacity
- Upto 73 kw generator
- 134 cm metal free scan able range
- Supports 205 kg patients accurately
- 70cm aperture
- +/- 30 degree tilt
OPTIMA 660 64/128
- 6.3 MHU anode heat capacity
- Upto 73 kw generator
- 134 cm metal free scan able range
- 134 cm metal free scan able range
- Supports 205 kg patients accurately
- 70cm aperture
- +/- 30 degree tilt
Are you ready to upgrade your healthcare facility with a state-of-the-art CT scan machine? Contact us today to learn more about our products and services. Our team is here to assist you in finding the perfect solution to meet your needs.
Experience the difference with Professional Healthcare Services – your trusted partner for CT scan machines and beyond.
